westpacapi



Description

This screen enables you to edit the payment method options. Payment methods will be filtered on checkout based on the zone you set for them, if any. Then, they will be displayed to the user for him to choose which payment method he prefers for his order.

Note that the payment method can probably support only a limited number of currencies.



Toolbar



  • Save & Close : Save the payment method options and return to the payment methods Management screen.
  • Save : Apply the modifications to the payment method and stay on the same screen.
  • Cancel : Return to the previous screen without saving the modifications.
  • Help : This button enables you to turn ON/OFF the help section, this screen will appear or disappear.



Main Information

If you use one of our commercial versions, you will be able to enter the name and description in different languages. This feature requires to have joomfish installed and can be activated in the configuration page, in the display tab. The languages available will be the ones in joomfish. If you don't enter something for a translation, it will just use the default information in the Main information tab instead. After you click on save or apply an additional publish icon will appear next to the fields where you entered something in the languages tabs so that you can easily enable or disable them. The default publish status can also be changed in the configuration page of HikaShop.



Generic information



  • Published : This option allows you to publish or not the payment method.
  • Images : Select here the desired images to be displayed for this payment method. If you want to add additional images, you can upload them via FTP into the folder media/com_hikashop/images/payment/ of your website and you will then be able to select them in that option.
  • Price : You can set the payment fee in this field, and select the currency of the fee.
  • Percentage : The percentage allows you to define a payment fee depending on the total amount of the products in the cart.



Install the plugin

In order to get the Westpac Api payment method, you need to download the payment plugin here : Download Westpac Api Plugin



Additional Information





In this part, we will see the main options of the Westpac API payment method. The only things you will need are your Customer Username, Customer Password and, for the production phase, your Customer Merchant. Don't forget to download your personal certificate.
First, you must go on payway.com.au and create your account and get your merchant references on the Westpac/Payway security page.

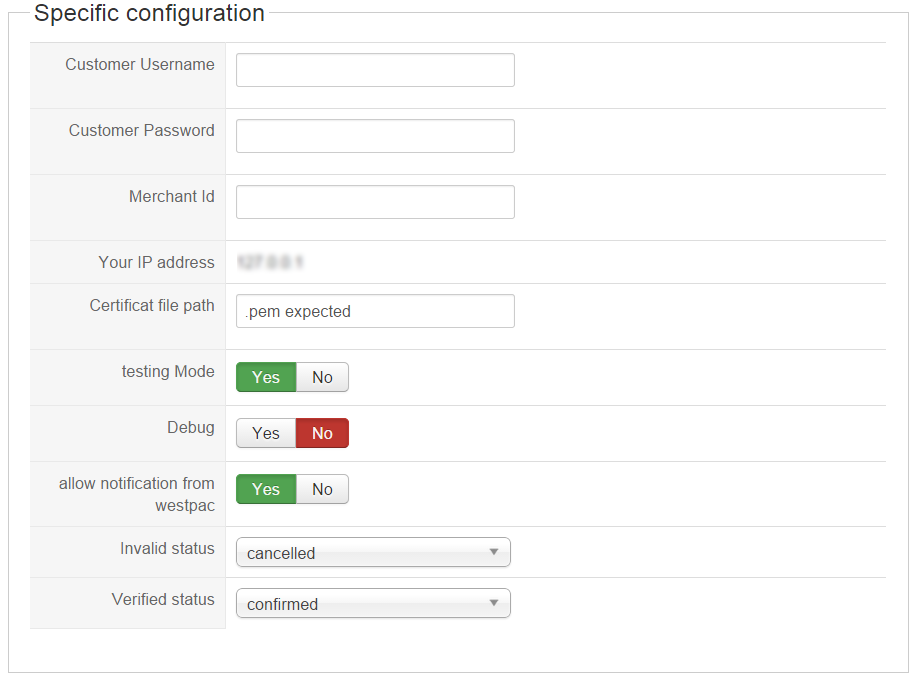

Later, go back on your HikaShop Westpac API specific configuration plugin and fill in the required input fields.



NOTE In order to learn more about the security settings page click here: Security page.



  • Customer Username : Just put your Customer Username in this field. This identifier is a code made of characters (number and letter).
  • Customer Password : Like the Customer Username. You will find it on the payway account settings page.
  • Customer Merchant : Just put your Customer Merchant in this field, especially for the production phase. (Not required in testing mode)
  • Your IP address : Here, you can see your IP address, that will be useful to set your Westpac/Payway settings page. Payway will only accept payment requests originating from this IP Address
  • Certificate file path : You must put the path to your personal certificate that you get on the payway settings page.

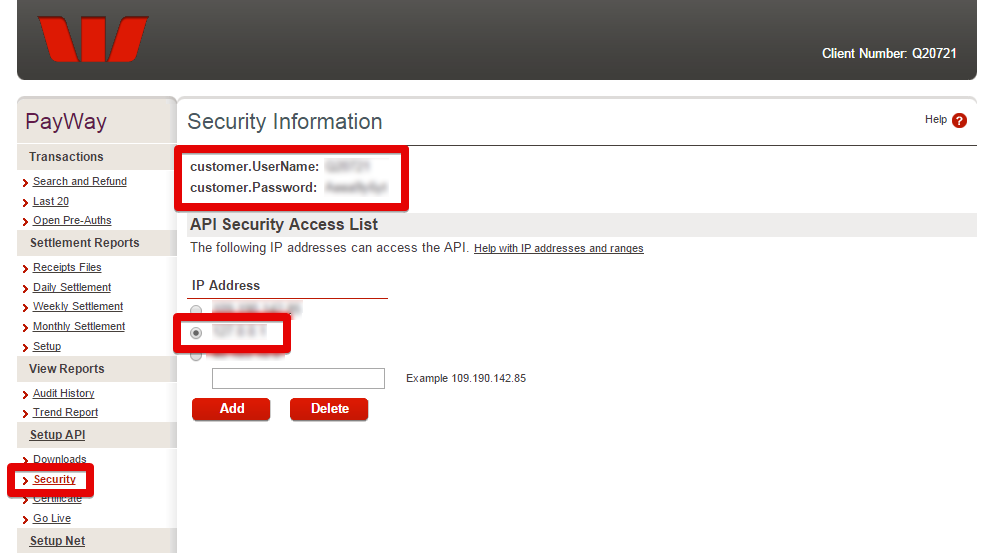

Security page :

To go to the Westpac/Payway Security page, go on payway.com.au log in, and click on Setup Api, then Security. You will now see your Customer Username, your Customer Password, and the Customer Merchant (not visible on the picture)

The second step is to fill in and add your website IP address.

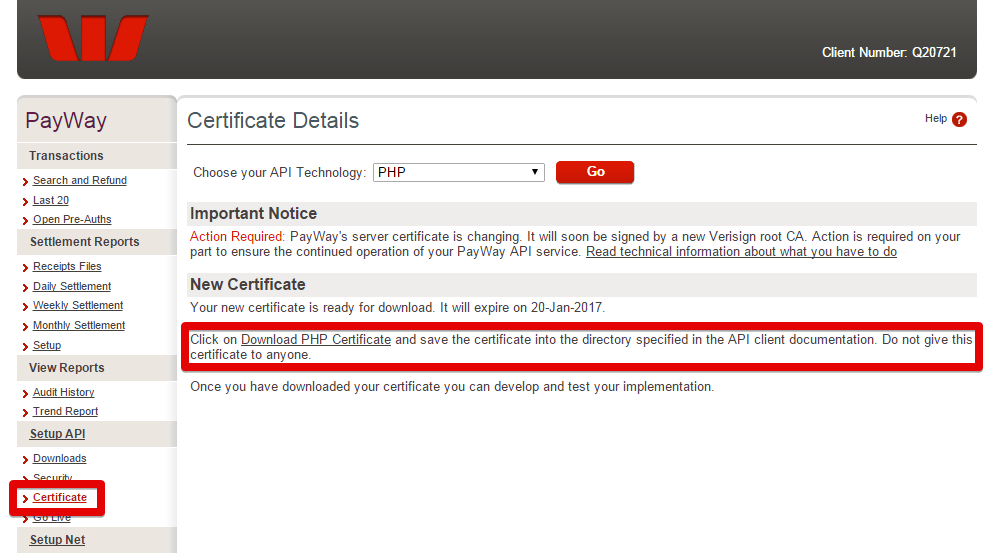

Certificate page :

In order to get your certificate, log in to your account on the payway.com.au website and click on Setup Api, then on Certificate, and download your PHP Certificate
Be sure, to put it on a secure folder on your website.





The different options:

  • Debug : Here, you can enable the debug option of the API. Don't enable this one if you don't have to debug the API's configuration
  • Allow notifications from Westpac Api : If this option is enable, the automatic response of Westpac Api server will be treated to update the order status. For example, if the payment has been completed correctly, the order status will be the specified verified status.
  • Testing Mode : You can choose here to switch between the testing mode (in order to use the Westpac Api sandbox) and the production phase. Don't forget to fill in your Customer Merchant if you didn't.
  • Invalid status :  Here, you can select the status to an order if the plugin receives a invalid completion notification from Westpac Api for an order.
  • Verified status : Same idea than "invalid".

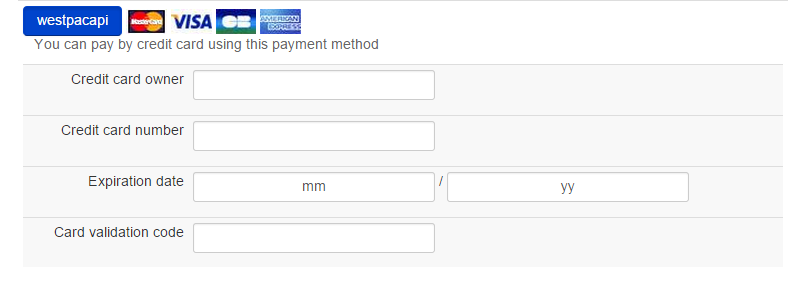

Closer Look on the checkout

When customers will proceed to the checkout, he will have to log in, and Westpac Api will call the Hikashop Credit Card Form to collect the required credit card information.







The customer will then see the transaction result from Westpac at the end of the checkout.





Restrictions

  • Zone : You can restrict the check payment method to a zone. By clicking on the edit icon, a popup will open enabling you to select a zone. You can also remove this limitation by clicking on the delete icon.
  • Shipping method : With this option you can select the shipping method for which this payment method will be available. For example, if you choose UPS, this payment method will only be usable if UPS is selected as shipping method. If an other shipping method is selected, this payment method will not be displayed. Note: if you selected "None" or don't select any shipping method, this payment method will always be available.
  • Currency: Choose the currencies allowed by this payment method.
  • Minimum price : The payment method can be available for only orders above a minimum price. This price uses the payment method price currency even if the price is 0.
  • Maximum price : The payment method can be available for only orders below a maximum price. This price uses the payment method price currency even if the price is 0.
  • With tax : Display the payment method only for products with tax.
  • Minimum quantity : If the order has a price lower than the price set in this field, so this payment method will not be available.
  • Maximum quantity : If the order has a price upper than the price set in this field, so this payment method will not be available.
  • Minimum weight : You can set a minimum weight so that orders below it won't be able to be paid with the current payment method. The weight of the order will be calculated based on the weight of each products in it.
  • Maximum weight : You can set a maximum weight so that orders over it won't be able to be paid with the current payment method. The weight of the order will be calculated based on the weight of each products in it.
  • Minimum volume : You can set a minimum volume so that orders below it won't be able to be paid with the current payment method. The volume of the order will be calculated based on the volume of each products in it. The volume is calculated with the width, height and length of the products.
  • Maximum volume : If the order has a volume upper than the price set in this field, so this payment method will not be available.
  • Prefix : You can restrict your payment methods to only post codes including such prefix with this option.
  • Minimum post code : You can restrict your payment methods to only post codes within a certain range whereby this is the minimum possible value
  • Maximum post code : You can restrict your payment methods to only post codes within a certain range whereby this is the maximum possible value
  • Suffix : You can restrict your payment methods to only post codes including such suffix with this option.



Access level



The ACLs are available in the business edition of HikaShop.

  • None : When "none" is selected, the payment method will never be displayed.
  • All : "All" allow you to display the payment method for all the type of users. All groups are allowed to pay via this payment method.
  • Custom : Here you can select which groups can use this payment method. All the checked groups will be able to use this method.
