Description

This screen enables you to edit the payment method options. Payment methods will be filtered on checkout based on the zone you set for them, if any. Then, they will be displayed to the user for him to choose which payment method he prefers for his order.

Note that the payment method can probably support only a limited number of currencies.



Toolbar



  • Save & Close : Save the payment method options and return to the payment methods Management screen.
  • Save : Apply the modifications to the payment method and stay on the same screen.
  • Cancel : Return to the previous screen without saving the modifications.
  • Help : This button enables you to turn ON/OFF the help section, this screen will appear or disappear.



Main Information

If you use one of our commercial versions, you will be able to enter the name and description in different languages. This feature requires to have joomfish installed and can be activated in the configuration page, in the display tab. The languages available will be the ones in joomfish. If you don't enter something for a translation, it will just use the default information in the Main information tab instead. After you click on save or apply an additional publish icon will appear next to the fields where you entered something in the languages tabs so that you can easily enable or disable them. The default publish status can also be changed in the configuration page of HikaShop.



Generic information



  • Published : This option allows you to publish or not the payment method.
  • Images : Select here the desired images to be displayed for this payment method. If you want to add additional images, you can upload them via FTP into the folder media/com_hikashop/images/payment/ of your website and you will then be able to select them in that option.
  • Price : You can set the payment fee in this field, and select the currency of the fee.
  • Percentage : The percentage allows you to define a payment fee depending on the total amount of the products in the cart.



Install the plugin

In order to get the Westpac Net payment method, you need to download the payment plugin here : Download Westpac Net Plugin



Additional Information

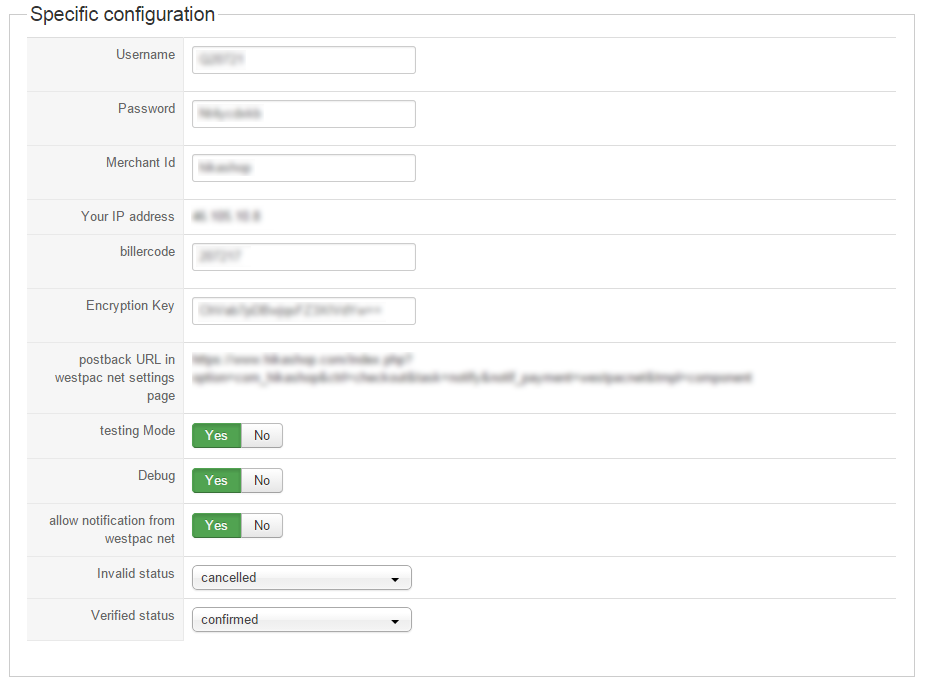

In this part, we will see the primordial options of the Westpac Net payment method. You will need your Username, Password, your Biller Code AND your Encryption Key, and for production phase, your Merchant id. These references are in the Westpac/Payway setting page.
Also, you want to note the server's IP Address and the postback URL, as it will be useful later on.

First, you must go on payway.com.au, to create your account and get your merchant references on the Westpac/Payway security page.
Later go back on your Hikashop Westpac Net specific configuration plugin and fill in required inputs.



NOTE To learn more about the Westpac/Payway setting process, click here: Security page.



  • Username : Just put your Username in this field. This identifier is a code made of characters (number and letter).
  • Password : Like the Username. You will find it on the account Westpac/Payway setting page.
  • Merchant Id : Your Merchant Id in this field, especially for the production phase. (Not required in testing mode)
  • Your IP address : Here, you can see your IP address, it will be useful to set it in your Westpac/Payway setting page. Payway will accept only the registered IP Address in order to process payments (even for the testing mode)
  • Billercode : Like other security references, you will find it on the Westpac/Payway setting page
  • Encryption Key : Another required field to decrypted Westpac/Payway notification.
  • Postback URL : This will be useful on the Westpac/Payway settings page.



Setup page :

In this part, we will discover together the important pages to set your plugin and the Westpac Net settings page.

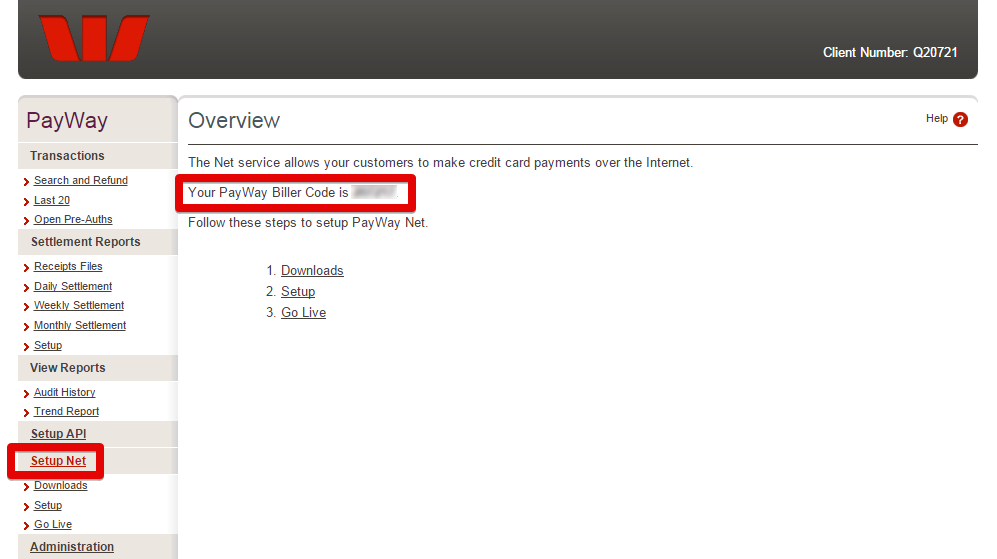

To go to Westpac/Payway Security page, go on payway.com.au log in, and click on Setup Net, then Security. You will now see your Biller Code, keep it for your Westpac Net specific configuration plugin and click on setup.



NOTE : Please note that I will only speak about setting pages which are linked to Westpac Net Workflow, there are more setting pages for currencies, taxes and many other stuff that I will not show in this tutorial.

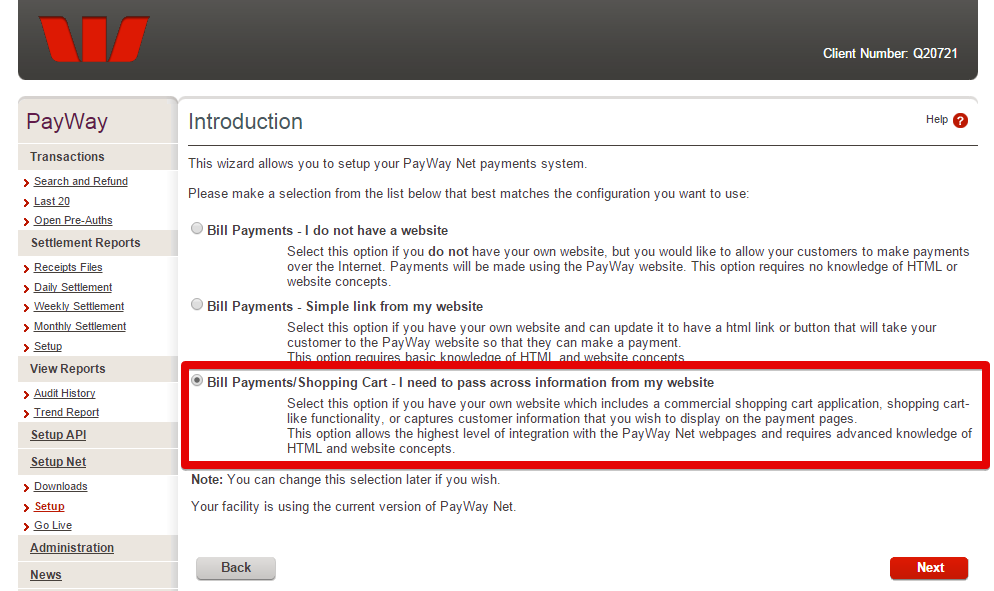

Here, you must select "Bill Payments/Shopping Cart", and continue by clicking on next.

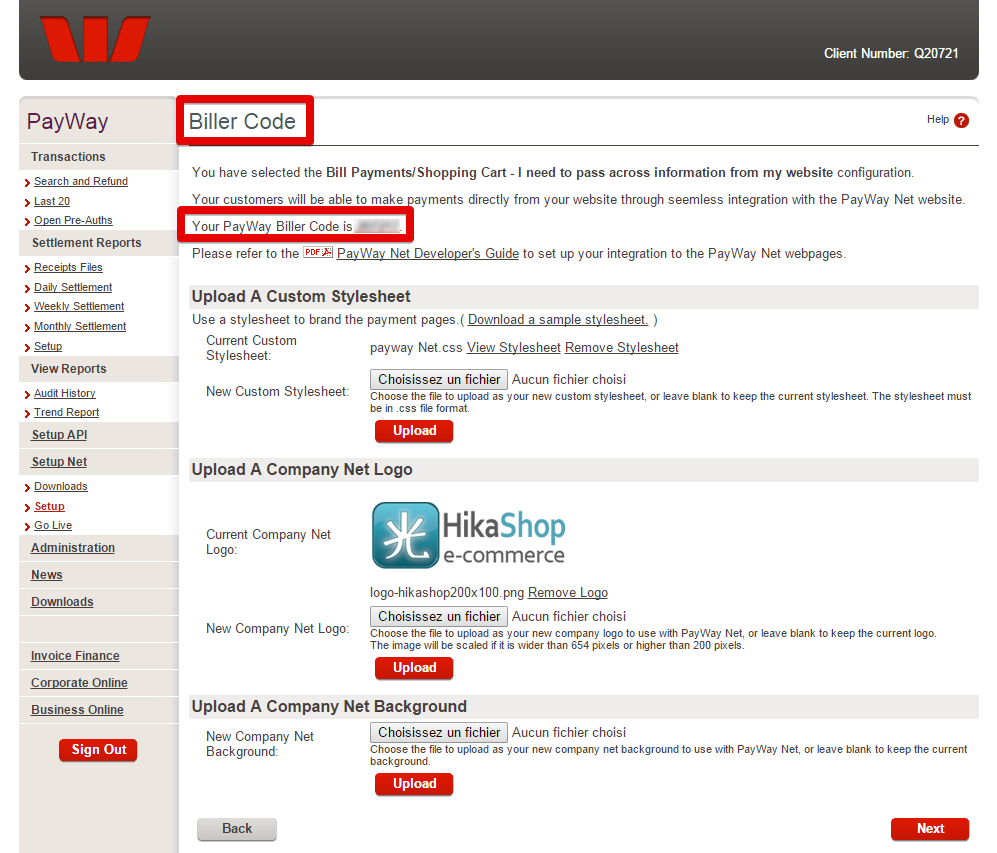

This page shows you again the Biller Code and allow you to custom the Westpac/Payway payment page, for our plugin configuration continue with the next button.

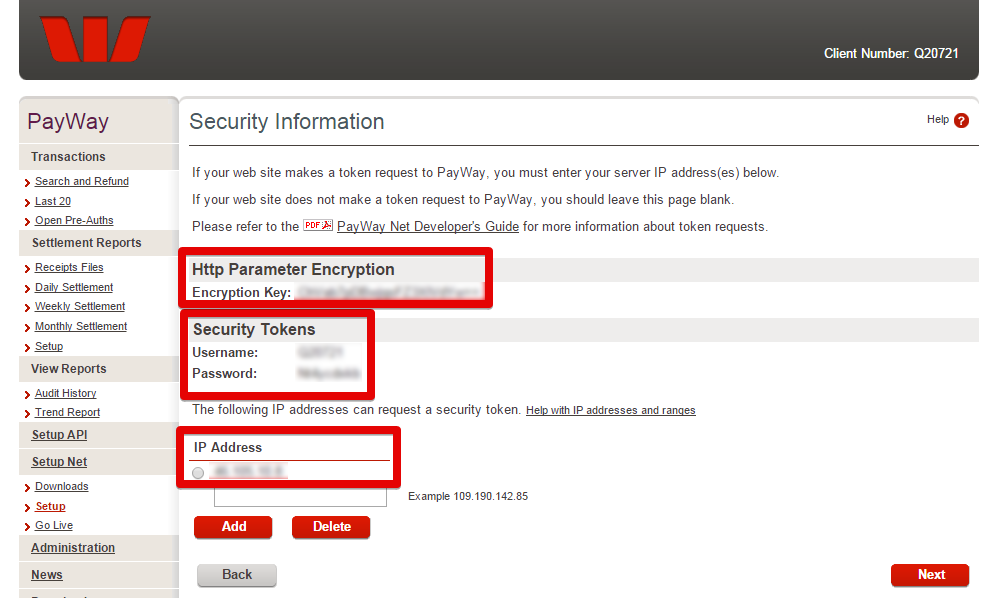

Here, you will find your Encryption Key, your Username and your password.
Plus, don't forget to set your IP Address shown in your Westpac Net plugin specific configuration, as usual click next.

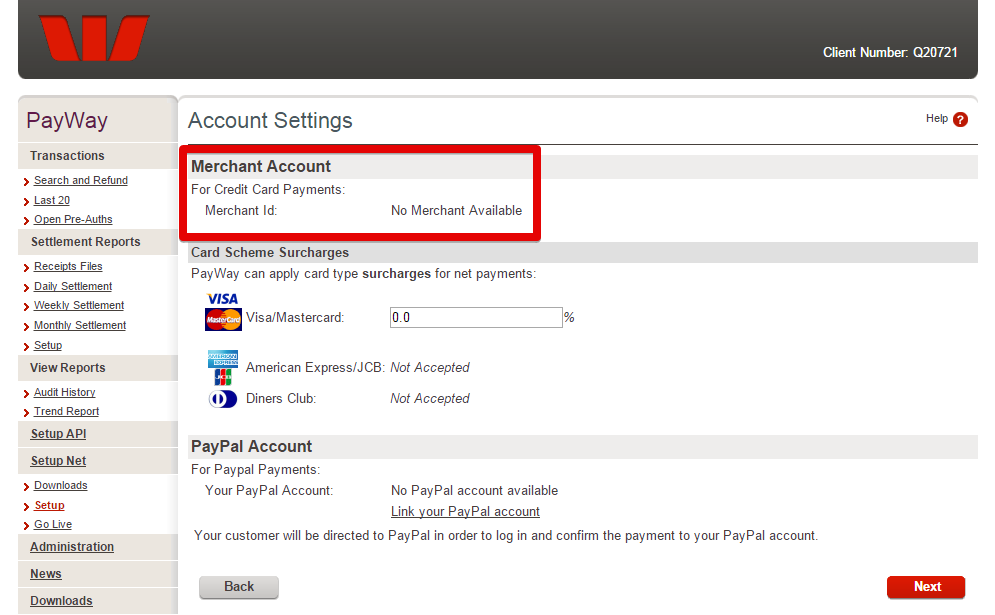

Close to the Westpac Net setting end, you will see your merchant Id, this one is facultative for testing mode but required for the production phase.





The different options:

  • Debug : You can enable here the debug option of the plugin which will then log the debug data in the payment log file of HikaShop.
  • Allow notifications from Westpac Net : If this option is enable, the automatic response of Westpac Net server will be treated to update the order status. For example, if the payment has been completed correctly, the order status will be the specified verified status.
  • Testing Mode : You can choose here to switch in testing mode (for use the Westpac Net sandbox) or in  production phase, don't forget to fill in your Merchant id if you didn't.
  • Invalid status :  Here, you can select the status to an order if the plugin receives a invalid completion notification from Westpac Net for an order.
  • Verified status : Same idea than "invalid".



Closer Look to the checkout

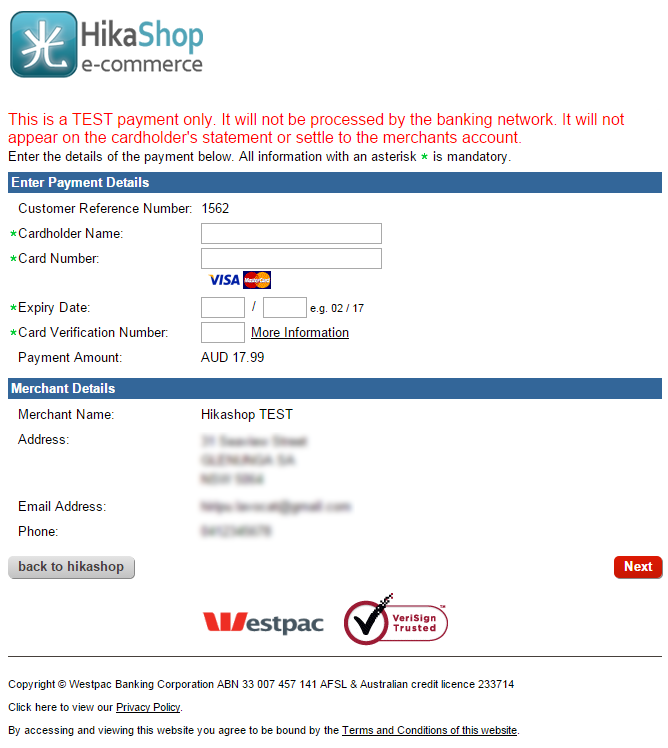

When the customer will proceed to the payment, HikaShop will redirect the customer to the PayWay payment platform.





The customer will have to fill in his credit card information, and he will see directly the transaction result, he will then be redirect to Hikashop (If you ask for it the Westpac/Payway setting page).





Restrictions

  • Zone : You can restrict the check payment method to a zone. By clicking on the edit icon, a popup will open enabling you to select a zone. You can also remove this limitation by clicking on the delete icon.
  • Shipping method : With this option you can select the shipping method for which this payment method will be available. For example, if you choose UPS, this payment method will only be usable if UPS is selected as shipping method. If an other shipping method is selected, this payment method will not be displayed. Note: if you selected "None" or don't select any shipping method, this payment method will always be available.
  • Currency: Choose the currencies allowed by this payment method.
  • Minimum price : The payment method can be available for only orders above a minimum price. This price uses the payment method price currency even if the price is 0.
  • Maximum price : The payment method can be available for only orders below a maximum price. This price uses the payment method price currency even if the price is 0.
  • With tax : Display the payment method only for products with tax.
  • Minimum quantity : If the order has a price lower than the price set in this field, so this payment method will not be available.
  • Maximum quantity : If the order has a price upper than the price set in this field, so this payment method will not be available.
  • Minimum weight : You can set a minimum weight so that orders below it won't be able to be paid with the current payment method. The weight of the order will be calculated based on the weight of each products in it.
  • Maximum weight : You can set a maximum weight so that orders over it won't be able to be paid with the current payment method. The weight of the order will be calculated based on the weight of each products in it.
  • Minimum volume : You can set a minimum volume so that orders below it won't be able to be paid with the current payment method. The volume of the order will be calculated based on the volume of each products in it. The volume is calculated with the width, height and length of the products.
  • Maximum volume : If the order has a volume upper than the price set in this field, so this payment method will not be available.
  • Prefix : You can restrict your payment methods to only post codes including such prefix with this option.
  • Minimum post code : You can restrict your payment methods to only post codes within a certain range whereby this is the minimum possible value
  • Maximum post code : You can restrict your payment methods to only post codes within a certain range whereby this is the maximum possible value
  • Suffix : You can restrict your payment methods to only post codes including such suffix with this option.



Access level



The ACLs are available in the business edition of HikaShop.

  • None : When "none" is selected, the payment method will never be displayed.
  • All : "All" allow you to display the payment method for all the type of users. All groups are allowed to pay via this payment method.
  • Custom : Here you can select which groups can use this payment method. All the checked groups will be able to use this method.
