What is the current image processing method?

Hi,
Can anyone explain to me how the images are handled in the current latest version?

I mean, lets say my design display the product images in the product page in a square format.
When I upload the images via administrator I either have portrait or landscape image (no square image).
How is it going to be handled when uploaded?
Is it going to:
- Fit?
- Crop?
- Stretch?

Take for example an image that is 156 x 200 pixels and I want it to place in a div that is 100x100px
- In fit mode the final resized image will be 77x100px leaving 33px empty/white space
- In Crop mode the final image will be 100x100 cropping some of the image to fit in box
- In Stretch mode it will stretch to fit

Also, can the images be accessed from on single folder? Or is it going to create folder within folder and so on...

Thanks

Hi,

As usual, the documentation here explains your options and the results: www.hikashop.com/support/documentation/5...fig.html#main_images

Only, for new installs since 2.3.5 it's not the folder media/com_hikashop/upload/thumbnails anymore, but instead images/com_hikashop/upload/thumbnails.

Thanks,
I still not quite sure if it will fit or crop.
I mean it mentions that bigger image will be resized, that I know. I need to know about the resizing mode.

Please tell me if you know.
Thanks

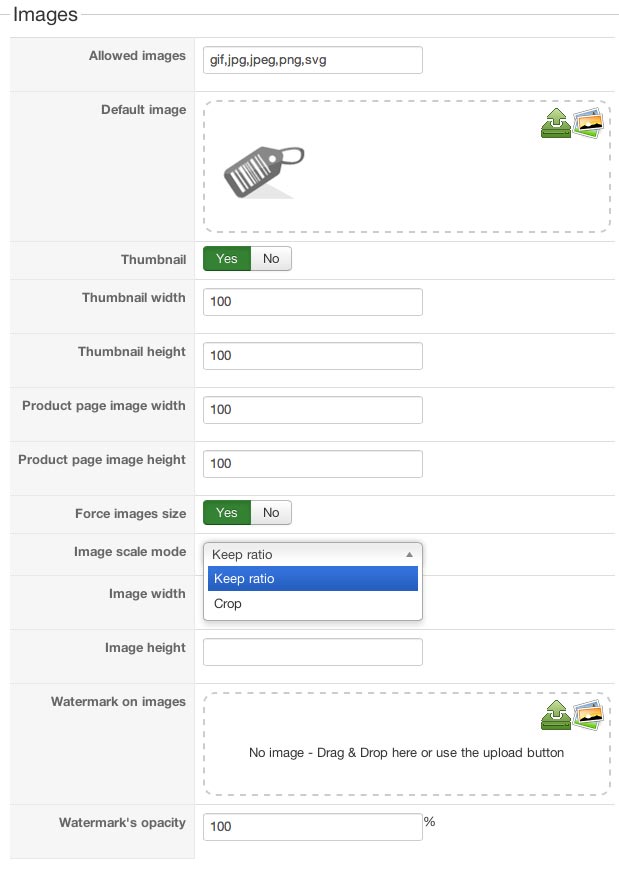

Well, a short trip to your own main configuration page would show you this:

See the "Image scale mode" dropdown? Yup, you can do either:
- Keep ratio = what you call "fit".
- Or crop.

The best of all: trying the different options costs nothing but very few minutes...
And as you know now, you can safely delete the subfolders of "thumbnails", they'll be recreated on the fly. So, no "traces" left after trying.

Perfect!
It is great to be able to ask the more experienced.
Thanks a lot

Hi all,
Just following up on this, how are you dealing with responsive images?
I mean, it adds an inline height: to the div. I know I can override it with !important. But I am just checking if anyone is doing it in a different way that does not require setting up the height for multiple media queries.
As an alternative I could create a template override and remove the inline height style.
What ware is the recommended way?

Also, when I delete the 'thumbnails' folder as suggested above the browser cached products wont load the images. I know I can clear the browser cache but expecting all the users to do the same is not an option, they will just leave and go somewhere else.
Any suggestion for this?

Thanks again

Hi Nicolas,
Yes, css and media queries is what I ma currently using.
Thanks for the link I will have a look at that. It is not that it show old images, if I delete the thumbnail folder it doesn't show images at all. But I think I figure that one out. It might've been because I changed the image size in the backend.
But anyway, I quit the browser came back to it today and the new thumbnails appeared fine.

Thanks
