Ordering Display of products grouped by category

  • Posts: 250
  • Thank you received: 7
11 years 11 months ago #126089

- HikaShop version -- : 2.2.2
-- Joomla version -- : 3.1.5
-- PHP version -- : 5.3.1

I have configured a Joomla Menu item to link to a Hikashop product listing.
I have configured the Hikashop options for this menu to display products "grouped by categories"
I have configured this to order by "Ordering"

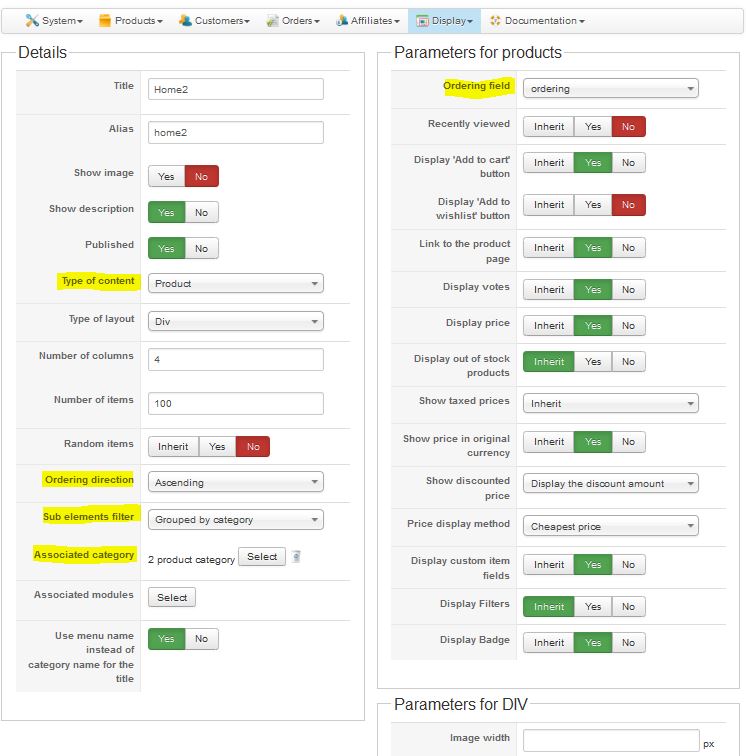

Screen shot Capture 1 shows the configuration screen for this menu item

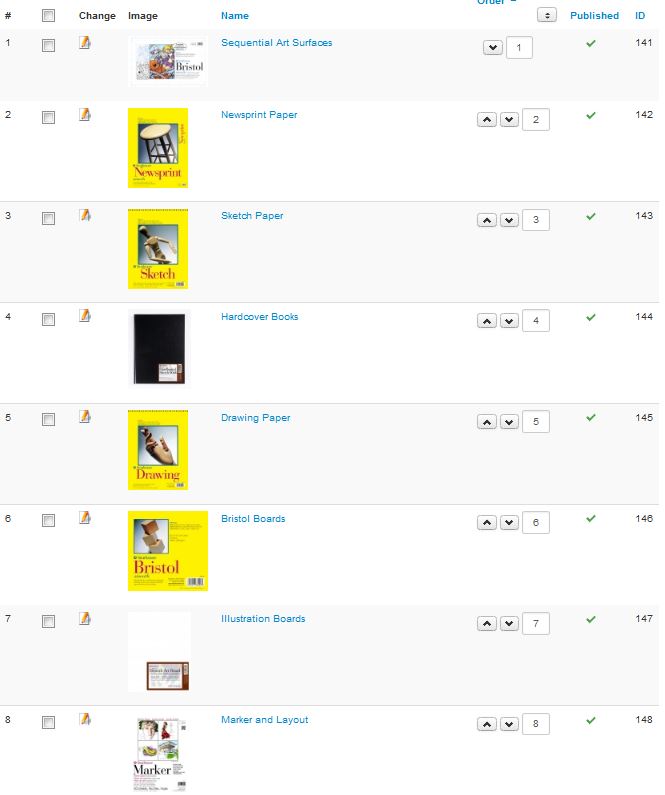

Capture 3 Shows the ordering for the categories, and I would expect this to be the order they are displayed on the front end.

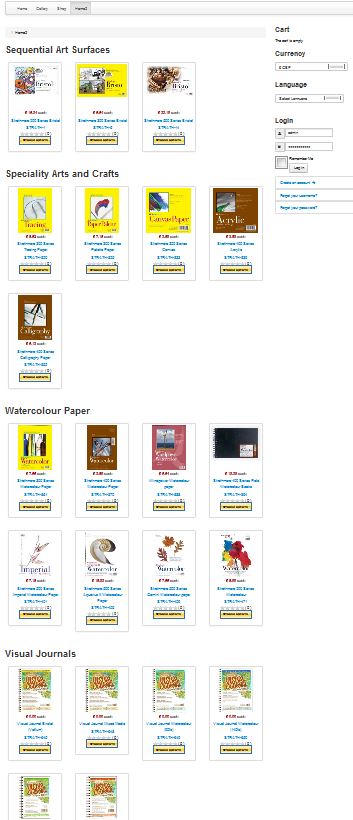

But Capture 2 shows how this displays on the front end, it does not respect the category ordering


(Note: there are more categories than I can fit on one screen)
The display is what I am looking for but I need the "Group by Category" option to respect the category ordering - can this be done?

There is another issue regarding editing the category ordering via the backend but I'll put this in another post.

Many thanks,

Ian

Ian Edwards Film Sound Recording
Alveley Mining Heritage
Mary Edwards-Porter - Author
Attachments:
Last edit: 11 years 11 months ago by iedwards.

Please Log in or Create an account to join the conversation.

  • Posts: 12953
  • Thank you received: 1778
11 years 11 months ago #126149

Hi,

The problem is coming from the fact that your "Ordering field" option of your product listing content menu is ordering your product regarding their ordering through "Hikashop->Products".
The best solution will be to directly sort your products regarding their category through "Hikashop->Products".

Please Log in or Create an account to join the conversation.

  • Posts: 250
  • Thank you received: 7
11 years 11 months ago #126155

Thank you very much for the prompt reply.

What you say makes sense but doesn't seem to work in practice. If I understand you correctly, if I want the products in Category A to appear first I order them 1,2,3 ... etc. Then If I want the products from category B to list next I should number them sequentially with the products in Category A so 11,12,13 ... etc. But the User interface doesn't allow me to do this, if I try and number products ordering as 11, 12, 13 and then save the ordering it reverts to 1,2,3 - so it only allows me to set the product order within the category and not globally.

Am I doing something wrong somewhere?

Thanks,

Ian

Ian Edwards Film Sound Recording
Alveley Mining Heritage
Mary Edwards-Porter - Author

Please Log in or Create an account to join the conversation.

  • Posts: 13201
  • Thank you received: 2322
11 years 11 months ago #126199

Hi,

I just tried on my end, and it is working fine.
You can't make a global ordering as you said. You have to order the products category by category.

Your configuration seems to be correct, do you have edited any views related on the products listing ?

Please Log in or Create an account to join the conversation.

  • Posts: 250
  • Thank you received: 7
11 years 11 months ago #126207

Hi,

Sorry, I still don't understand what I need to do to change the order of the categories when I have selected "group by category" as editing the product order within a category has no effect on the display illustrated in my original post.

If you have selected "group by category" then I would expect it to order by category first and then by product within each category group, but what you seem to be saying is that it doesn't do that?

Ian

Ian Edwards Film Sound Recording
Alveley Mining Heritage
Mary Edwards-Porter - Author

Please Log in or Create an account to join the conversation.

  • Posts: 13201
  • Thank you received: 2322
11 years 11 months ago #126283

Hi,

Sorry I don't understood that you were talking about the categories order. I was thinking about the products ordering inside a category.
To change the order of the categories, you have to go through Products > Categories, then display only the sub elements, and you can order the categories which are inside another one. It can only order the categories on 1 level.

Hope this will help you.

Please Log in or Create an account to join the conversation.

  • Posts: 250
  • Thank you received: 7
11 years 11 months ago #126334

Hi Xavier,

It doesn't help I'm afraid, the problem seems to be the limit of ordering on one level. I have my categories on two levels and would expect them to display ....

1st Level / 2nd Level
1 / 1
1 / 2
1 / 3
1 / 4
2 / 1
2 / 2
2 / 3
2 / 4
3 / 1
3 / 2
.... etc

In fact they display as

1st Level / 2nd Level
1 / 1
3 / 1
5 / 1
6 / 1
2 / 1
1 / 10
1 / 11
1 / 12
1 / 2
5 / 2
6 / 2
2 / 2
1 / 3
5 / 3
4 / 3
1 / 4
6 / 4
1 / 5
6 / 5
2 / 5
1 / 6
1 / 7
1 / 8
1 / 9

Which is unusable really, they might just as well be random.

Can something be done to correct this?

Many thanks,

Ian

Ian Edwards Film Sound Recording
Alveley Mining Heritage
Mary Edwards-Porter - Author
Last edit: 11 years 11 months ago by iedwards.

Please Log in or Create an account to join the conversation.

  • Posts: 26274
  • Thank you received: 4045
  • MODERATOR
11 years 11 months ago #126468

Hi,

You asked for a sorting on the field "product_ordering" and HikaShop display you the products in the sort you asked for.
Because you are displaying products of sub categories, the display is not right like you expected to but it's logically regarding the configuration.

So in your situation, you want a more specific and more complex sorting which is possible using a little joomla plugin.

class plgHikaShopCustomerOrdering extends JPlugin {
  function onBeforeProductListingLoad(&$filters, &$order, &$view, &$select, &$a, &$b, &$on) {
    if($order == ' ORDER BY a.ordering ASC')
     $order = ' ORDER BY a.category_id ASC, a.ordering ASC';
  }
}
And it will sort first by the category id, and second by the ordering value.
But it uses the category id and not some kind of ordering between the categories. If you want something more complex, you will have to improve the algorithm and add more values in the SQL query made by HikaShop in order to get the product listing.

The code I gave require to create a little Joomla plugin with a XML and a PHP file.
Please check the Joomla documentation in order to know more about that. You can also use a simple HikaShop plugin as a base for your XML content (just have to rename some values).

Kind regards,

Jerome - Obsidev.com
HikaMarket & HikaSerial developer / HikaShop core dev team.

Also helping the HikaShop support team when having some time or couldn't sleep.
By the way, do not send me private message, use the "contact us" form instead.

Please Log in or Create an account to join the conversation.

  • Posts: 250
  • Thank you received: 7
11 years 11 months ago #126736

Hi,

I'm disappointed that you don't agree that the way ordering works in this case is completely illogical.

Yes I am displaying products, I haven't specifically asked to order by product_ordering, I have simply selected to order by "Ordering", but I have also selected to "Group by Category", therefore I would expect category ordering to be taken into account - so I would see products ordered by category ordering then ordered by product ordering within each category.

I don't see how you can logically order just by product_ordering as there are products from many categories with the same value of product_ordering. I have tried editing product ordering so that no two products have the same value but the interface doesn't allow that. If I set products in Category A to order 1 to 10 and then try and set products in Category B to 11 to 20 when I save ordering for category B it is automatically reset to 1 to 10.

I will try the plug in code you suggest but it appears the code will sort by category_id which is not what I need, I'm assuming I can change that to sort by category_ordering which is what I am after. Having said that I would still prefer it f Hikashop worked logically!

Thanks

Ian

Ian Edwards Film Sound Recording
Alveley Mining Heritage
Mary Edwards-Porter - Author

Please Log in or Create an account to join the conversation.
