field layout of address fields on checkout page

-- HikaShop version -- : latest
-- Joomla version -- : latest
-- PHP version -- : 5.3
-- Browser(s) name and version -- : latest

Hi,
I'd like to re-arrange field-layout of address fields on checkout page. Can't find the right view.
I've managed to do the same with the user-fields on the checkout-page but the address fields seem to be rendered different.

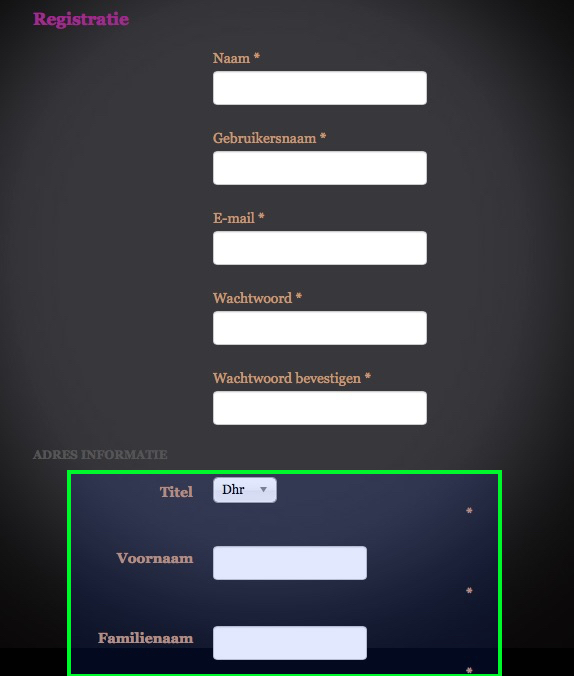

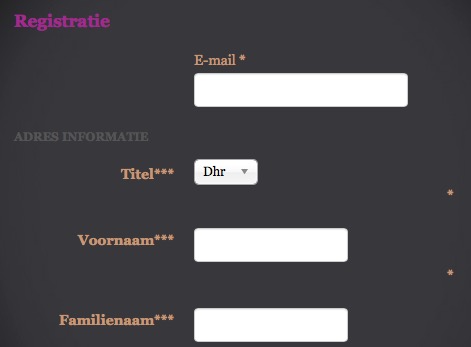

See screenshot please

thanks in advance.

Mark

Sorry Jerome,

I haven't been clear enough, my bad.
The ordering is not a problem, I do want to rearrange the label / input field / asterisk (on one line) like the user-fields above the address fields. See the attachment in previous post.

Thanks

Mark

Hello Mark,
The solution will be to :
- Use some CSS code : www.hikashop.com/support/documentation/1...the-display.html#css
OR
- Directly edit the code of the "Registration" file of the "User" View of your front-end template via "Hikahsop->Display->Views".

Thanks Mohammed,

That is what i was thinking also but whatever I change in the registration-file nothing happens.
Also the way the user-fields are displayed is different then the way of displaying the address-fields.

That is why I was able to change the layout of user fields (see first attachment) but I'm tucked with the address-fields.

Seems there is another file loaded which I can't find?

Any ideas?

Thanks again.

Mark

Thanks Nicolas,

In this file there are no address fields. only below code loading the address.
I try to find the file with the address fields so I can change the layout like I did with the user-fields (above address fields on checkout page).

	$this->type = 'address';
	 echo $this->loadTemplate();

Thanks Jerome,

Indeed I've found the file user | custom_fields_bootstrap.

But how can I re-arrange the layout of the fields in one line, I don't like to change the order but just the position of the label | field | mandatory-asterisk (*)

I'd like to arrange the fields like:

label * field

now its showing like

label field *


the code says:

	 echo $this->fieldsClass->display(
			$oneExtraField,
			@$this->$type->$fieldName,
			'data['.$type.']['.$fieldName.']',
			false,
			' '.$onWhat.'="hikashopToggleFields(this.value,\''.$fieldName.'\',\''.$type.'\',0);"',
			false,
			$this->extraFields[$type],
			$this->$type
	);

Thanks Jerome,

I'll have a look at that.


Mark

Jerome,

Since the required update I'd like to submit is affecting the HS-core-class "administrator/components/com_hikashop/classes/field.php",
what is the best way to realise this? My view file is: user | custom_fields_bootstrap. The only function which I'd like to redefine is the field "display" function in the field.php (class). So I tried to copy this function from the field class into my view-file and rename it.... but this was not working probably because there are more (helper) classes needed.

I'd like to change the display-function in the field.php class-file without losing changes after hockshop-upgrade (see function-code below).

Hop you can guide me in right direction.

Thanks in advance.

Mark

	function display(&$field, $value, $map, $inside = false, $options = '', $test = false, $allFields = null, $allValues = null, $requiredDisplay = true) {
		$field_type = $field->field_type;
		if(substr($field->field_type,0,4) == 'plg.') {
			$field_type = substr($field->field_type,4);
			JPluginHelper::importPlugin('hikashop', $field_type);
		}
		$classType = 'hikashop'.ucfirst($field_type);
		if(!class_exists($classType))
			return 'Plugin '.$field_type.' missing or deactivated';

		$class = new $classType($this);
		if(is_string($value))
			$value = htmlspecialchars($value, ENT_COMPAT,'UTF-8');

		$html = $class->display($field,$value,$map,$inside,$options,$test,$allFields,$allValues);

		if($requiredDisplay && !empty($field->field_required))
			$html .=' <span class="hikashop_field_required">*</span>';
		return $html;
	}

Thanks Nicolas,

Thats fine, but I do need a div-structure which is different than the core structure.

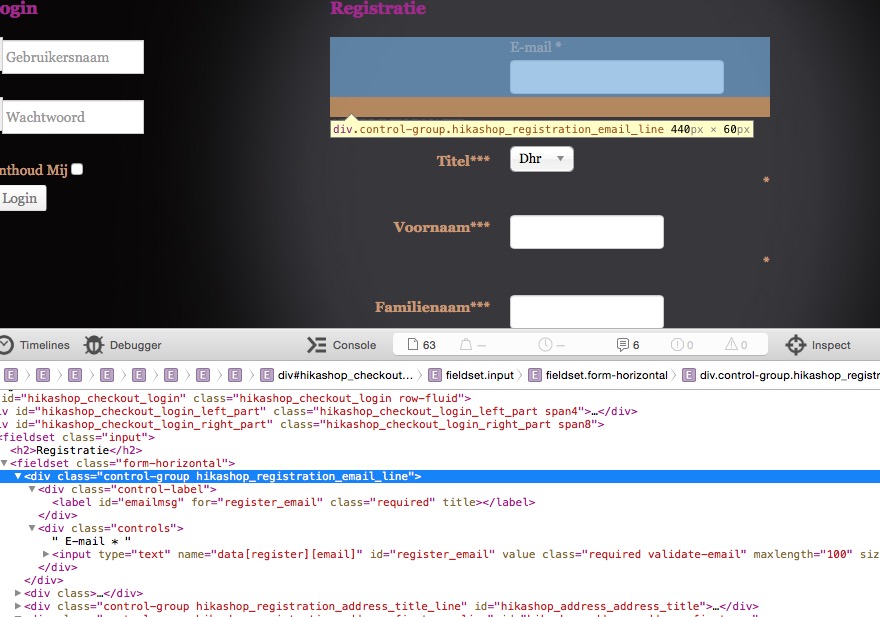

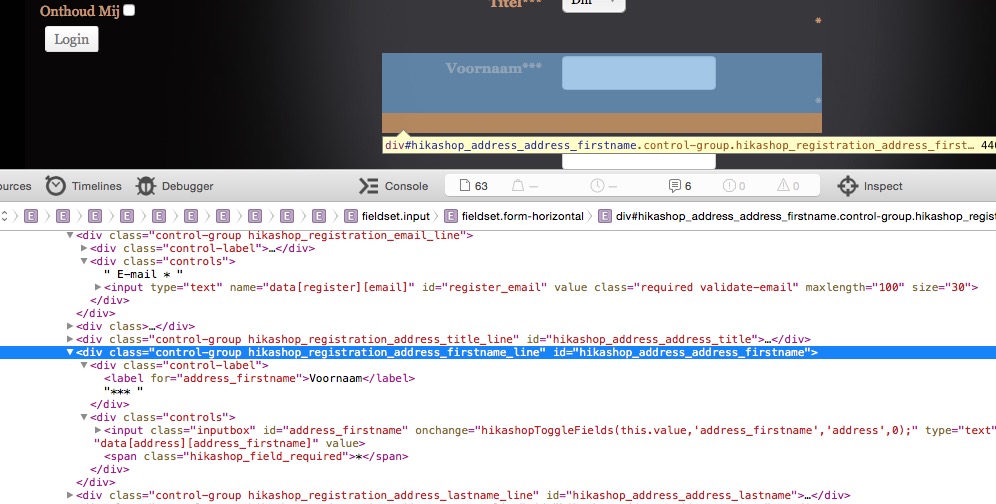

See my screen print and watch the e-mail-field. This is what I want for the address-fields to display like.

The label and asterisks are placed just before the input-field (see the e-mail-div-structure which I altered myself in the view).

Thanks so far.

Mark

Nicolas,

Your totally right, sometimes I'm thinking to difficult....

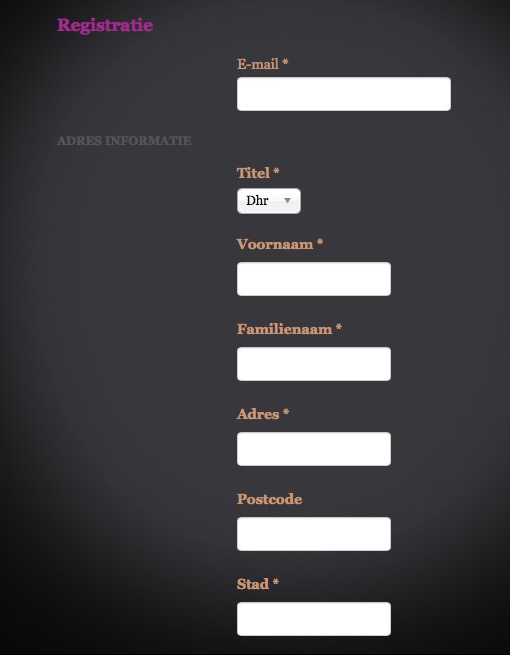

I've done it (see screenshot).

Thanks again.

Mark
