Images don't show correct in product editing

  • Posts: 4
  • Thank you received: 0
4 years 9 months ago #308782

-- HikaShop version -- : 4.2.0
-- Joomla version -- : 3.9.10 Stable
-- PHP version -- : 7.2.19-he.0
-- Browser(s) name and version -- : Firefox 69.0b4

Hello,

when editing products and try to add an image, in the popup and in frontend images are not shown. In Hikashop it inserts in image path a backslash wrong. Please can you tell me, what in which file I have to change? I cannot find it :(

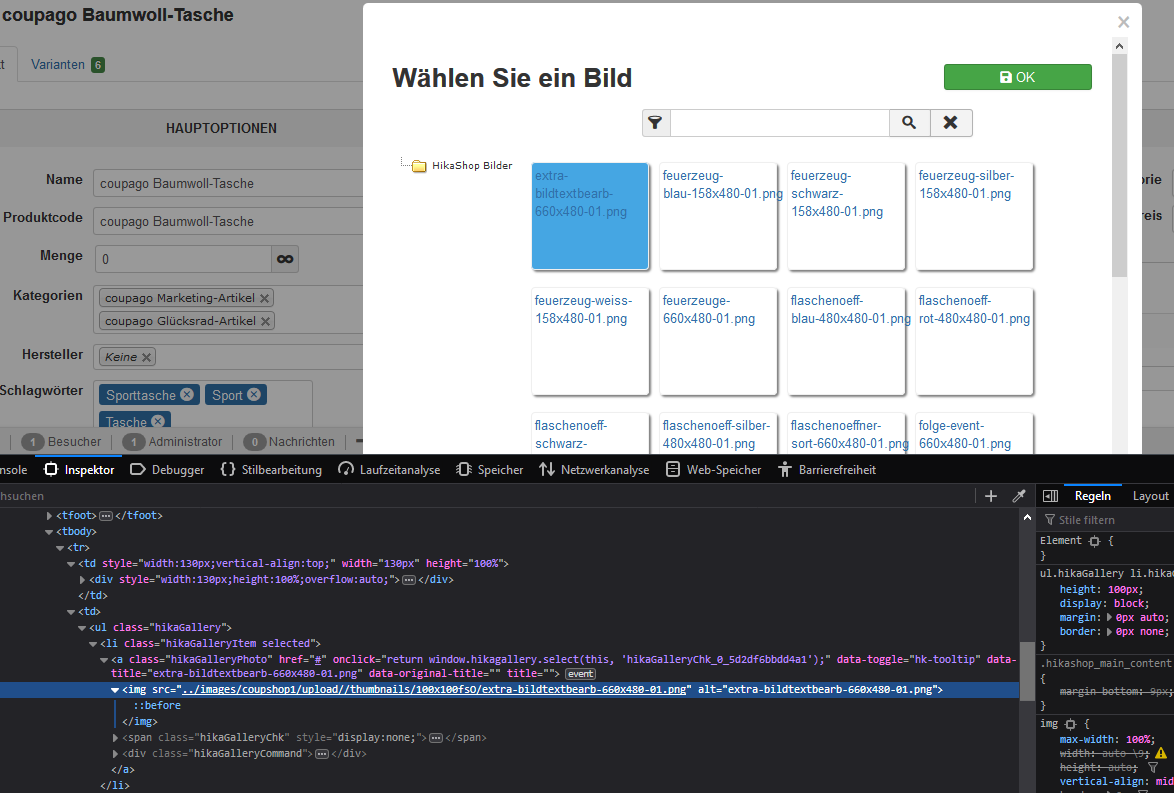

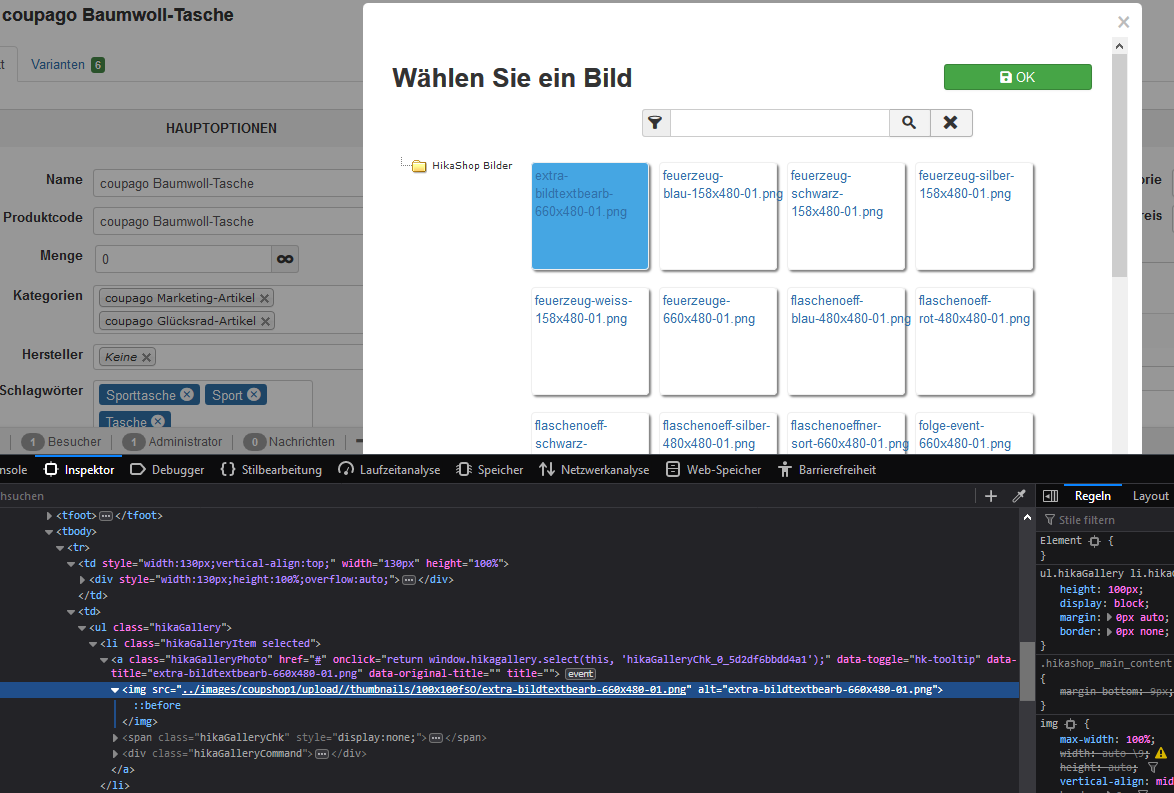

Please see in attachments the screenshots: I think that all what is to configure is done right....



Thank you very much for helping,
Regards,
Karl

Attachments:

Please Log in or Create an account to join the conversation.

  • Posts: 4508
  • Thank you received: 610
  • MODERATOR
4 years 9 months ago #308806

Hello,

I can tell you the folder, but not sure that can help you though
You will find all your HikaShop images here : "YourWebsite\images\com_hikashop\upload"

If you are unable to solve your issue, you can send us some backend access via our Contact us form (add an url link to this topic to your message) in order to see by ourself the context and process some tests.

Regards

Last edit: 4 years 9 months ago by Philip.

Please Log in or Create an account to join the conversation.

  • Posts: 4
  • Thank you received: 0
4 years 9 months ago #308829

Hello,

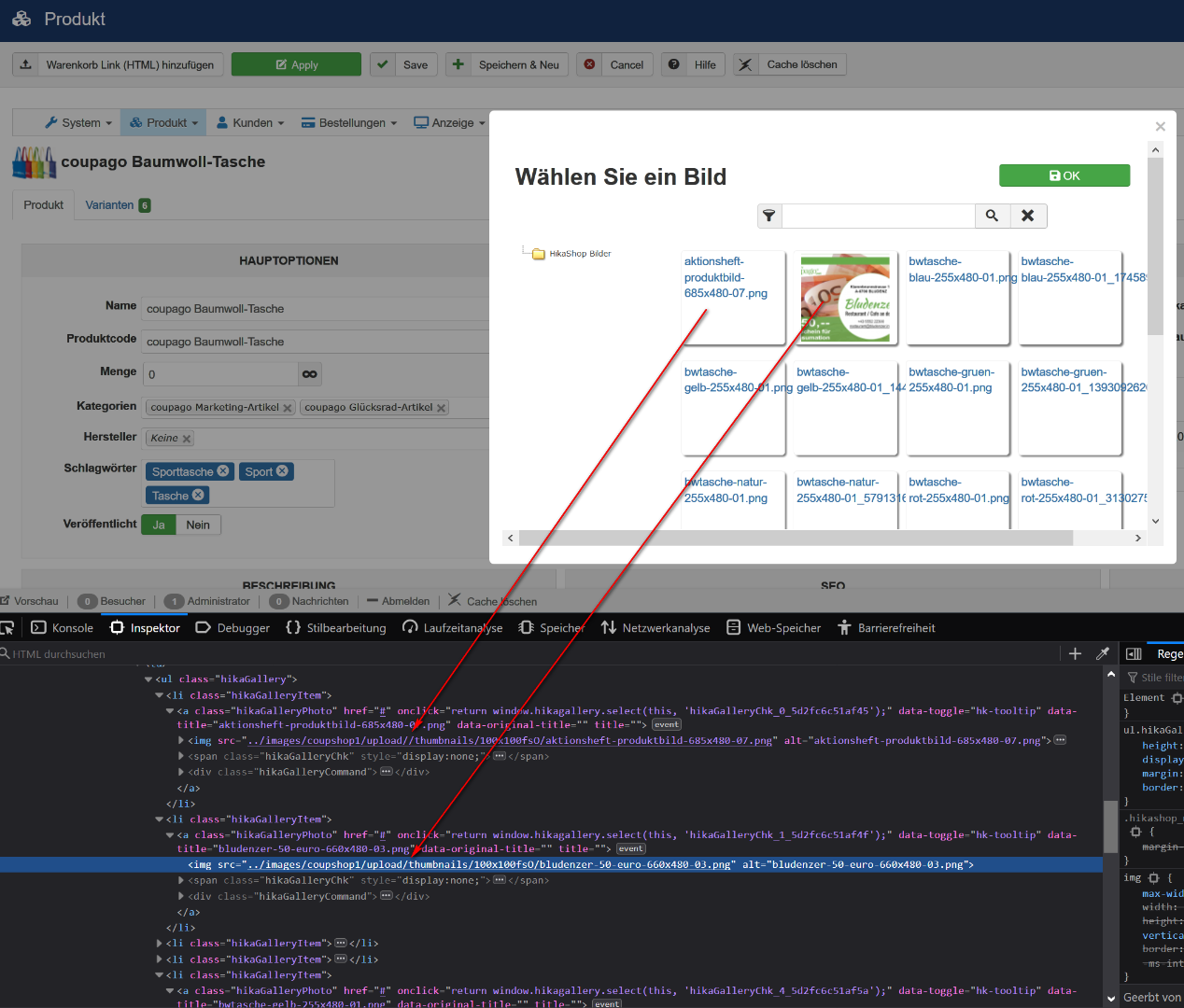

thank you for your answer. I'm sorry, but this didn't help me. Please have a look at the screenshots which I sent you. There you can see that Hikashop produces the html tag like "<img src='../images/coupshop1/upload//thumbnails/100x100fsO/aktionsheft-produktbild-685x480-07.png' >" which contains after ...upload... two backslashes. when I delete one of them in firefox inspector, the images are shown correctly. So please can you tell me in which file I can make changes in code that one of the backslashes is deleted?
Thank you very much for help.
Regards,
Karl

Please Log in or Create an account to join the conversation.

  • Posts: 81504
  • Thank you received: 13064
  • MODERATOR
4 years 9 months ago #308851

Hi,

Make sure that you end the path in the HikaShop configuration with a /
Then it should be fine.

Please Log in or Create an account to join the conversation.

  • Posts: 4
  • Thank you received: 0
4 years 9 months ago #308865

Hello,

Sorry, this also did not help. I had tried before with and without "/". This is not the problem.

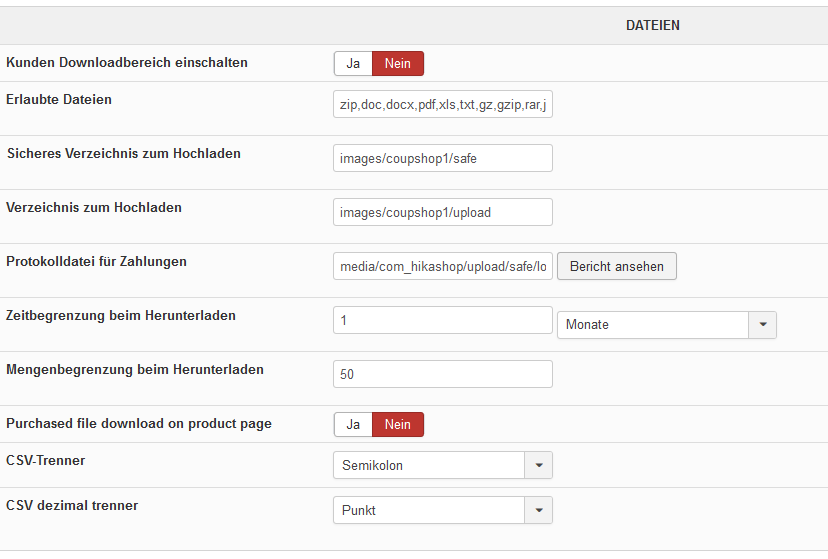

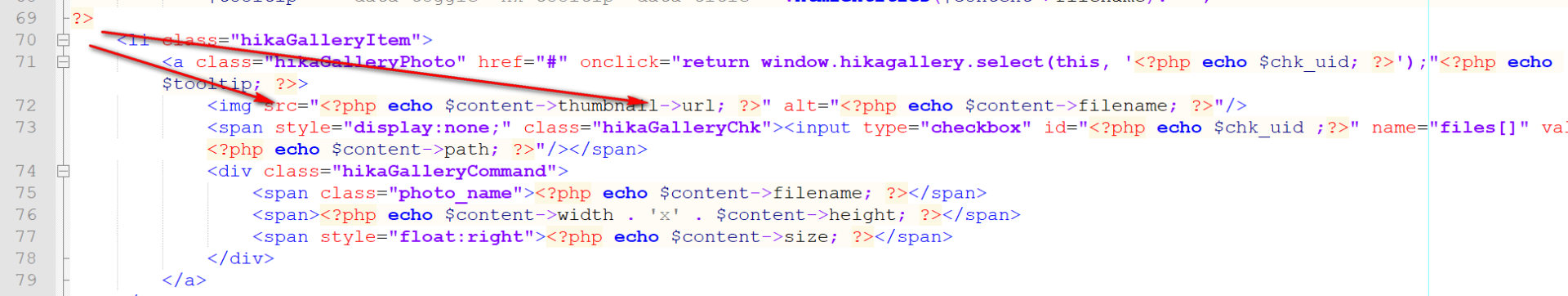

Again: Please look at the screenshots! I can't find out where the url is constructed. I think that there is the problem. The paths in configuration are correct. The images in shop frontend are shown. But the images in the popup when editing (adding or changing images) are not shown. And when I have a lot of images and I can see only part of the names of them, it is too hard to find some pics without to see it real.

Thank you for your time to help,
regards,
Karl

Attachments:

Please Log in or Create an account to join the conversation.

  • Posts: 81504
  • Thank you received: 13064
  • MODERATOR
4 years 9 months ago #308907

Hi,

I did some debugging today and found the issue.
Add the line:
$dir = trim($dir,'/').'/';
after the line:
$dir = str_replace(DS, '/', $dir);
in the file administrator/components/com_hikashop/helpers/gallery.php and that will fix the problem.
We'll also add that patch on our end.

Please Log in or Create an account to join the conversation.

  • Posts: 4
  • Thank you received: 0
4 years 9 months ago #308912

Hi,

thank you very much for your code.
That did it perfectly! Now everything works great!

Thank's a lot,
Regards,
Karl

Please Log in or Create an account to join the conversation.
