sveawebpay



Description

This screen enables you to edit the payment method options. Payment methods will be filtered on checkout based on the zone you set for them, if any. Then, they will be displayed to the user for him to choose which payment method he prefers for his order.

Note that the payment method can probably support only a limited number of currencies.



Toolbar



  • Save & Close : Save the payment method options and return to the payment methods Management screen.
  • Save : Apply the modifications to the payment method and stay on the same screen.
  • Cancel : Return to the previous screen without saving the modifications.
  • Help : This button enables you to turn ON/OFF the help section, this screen will appear or disappear.



Main Information

If you use one of our commercial versions, you will be able to enter the name and description in different languages. This feature requires to have joomfish installed and can be activated in the configuration page, in the display tab. The languages available will be the ones in joomfish. If you don't enter something for a translation, it will just use the default information in the Main information tab instead. After you click on save or apply an additional publish icon will appear next to the fields where you entered something in the languages tabs so that you can easily enable or disable them. The default publish status can also be changed in the configuration page of HikaShop.



Generic information



  • Published : This option allows you to publish or not the payment method.
  • Images : Select here the desired images to be displayed for this payment method. If you want to add additional images, you can upload them via FTP into the folder media/com_hikashop/images/payment/ of your website and you will then be able to select them in that option.
  • Price : You can set the payment fee in this field, and select the currency of the fee.
  • Percentage : The percentage allows you to define a payment fee depending on the total amount of the products in the cart.



Install the plugin

You can download the plugin here : Download Svea Webpay Plugin



Then, install it via the Joomla installer.

Finally, go in the menu System>Payment methods of HikaShop, click on the "new" button and select the Svea webpay payment plugin and configure it as you need it.

Additional Information



NOTE : The Svea Webpay plugin works with 4 different payment modes, Invoice, Payment Plan, Card Payment and Direct Bank. Please also note that for now, the Invoice and Payment modes will only work for Swedish customers so you'll want to use the "zone" restriction setting in order to restrict the payment method to Sweden.





All required references in order to configure your plugin will be given to you on your Svea Webpay account settings page.

Note : If you have to use several of these 4 modes, you have will have to create several instances of that payment plugin and in each one, you'll need to fill in the identification information relative to that payment mode. Some could be different and some are identical from each mode, so beware which references are required.

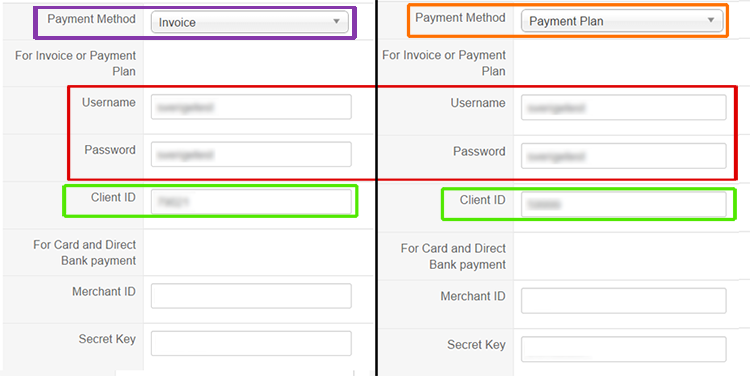

Required For Invoice and Payment Plan



The Invoice and Payment Plan Modes require you to fill the same inputs : "Username" and "Password", BUT, the "client ID" is different.



In red, it requires the same value, and in green, different values.





  • USERNAME : Same Value for both modes.
  • PASSWORD : Same Value for both modes.
  • CLIENT ID : Differents !

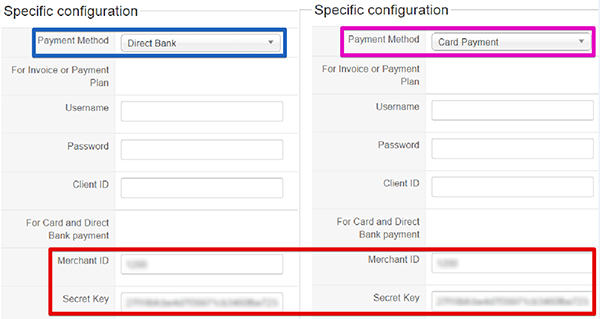

Required For Direct Bank and Card Payment.



The Direct Bank and Card Payment Modes require you to fill the same inputs : "Merchant ID" and "Secret Key".





  • Merchant ID : Same Value for both modes.
  • Secret Key : Same Value for both modes.

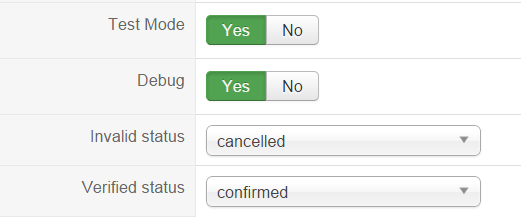

The different options:



All these options are common to All modes.





  • Test Mode : You can choose here to switch between test mode (without real transactions) and production mode.
  • Debug : Here, you can set the debug mode, which means that each payment or test will add information in the payment log file in order to help you see sent and received data in the Files section of the configuration page of HikaShop.
  • Invalid Status : The aim of this option is to choose which status will be set for an invalid payment notification from the svea Webpay platform.
  • Verified Status : Same idea than above, but for a verified payment notification from the Svea Webpay platform.

Help : If you don't know anything about the payment log, go here.

Note : In Test Mode, your products must cost at least 1000 SEK in order to test the Svea Webpay platform.



Step by step configuration



Note : We will just take for example the Invoice mode.

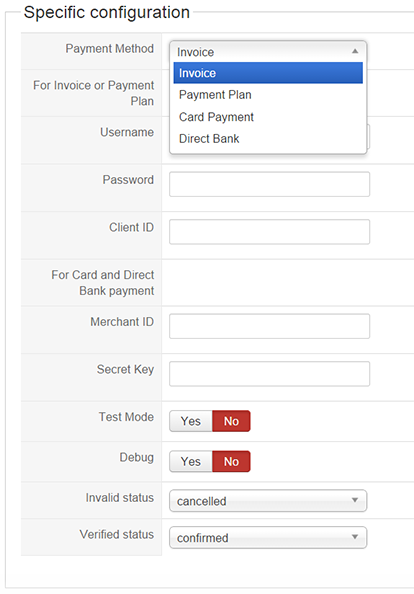

First, select your mode in the Payment Method dropbox.

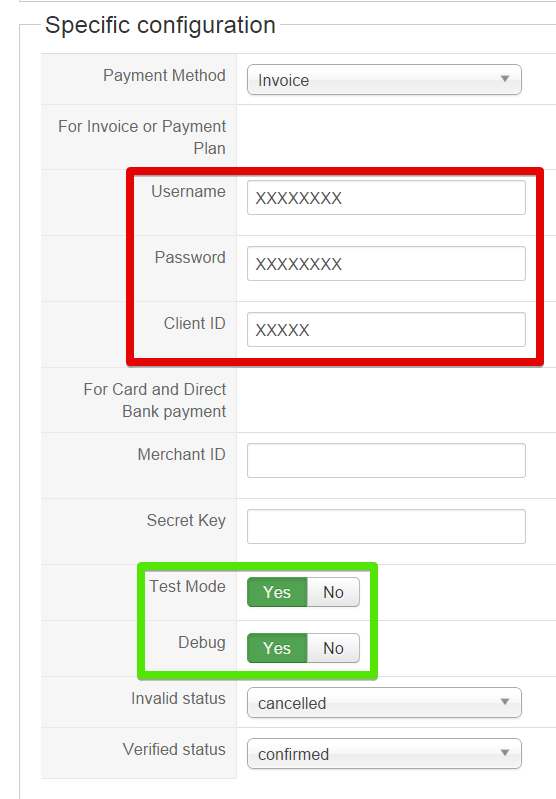

Then, fill the required identification fields for the selected Payment Method (here : Invoice), and if it's the first time, we recommend the Test Mode AND the Debug options, so switch them to "Yes".

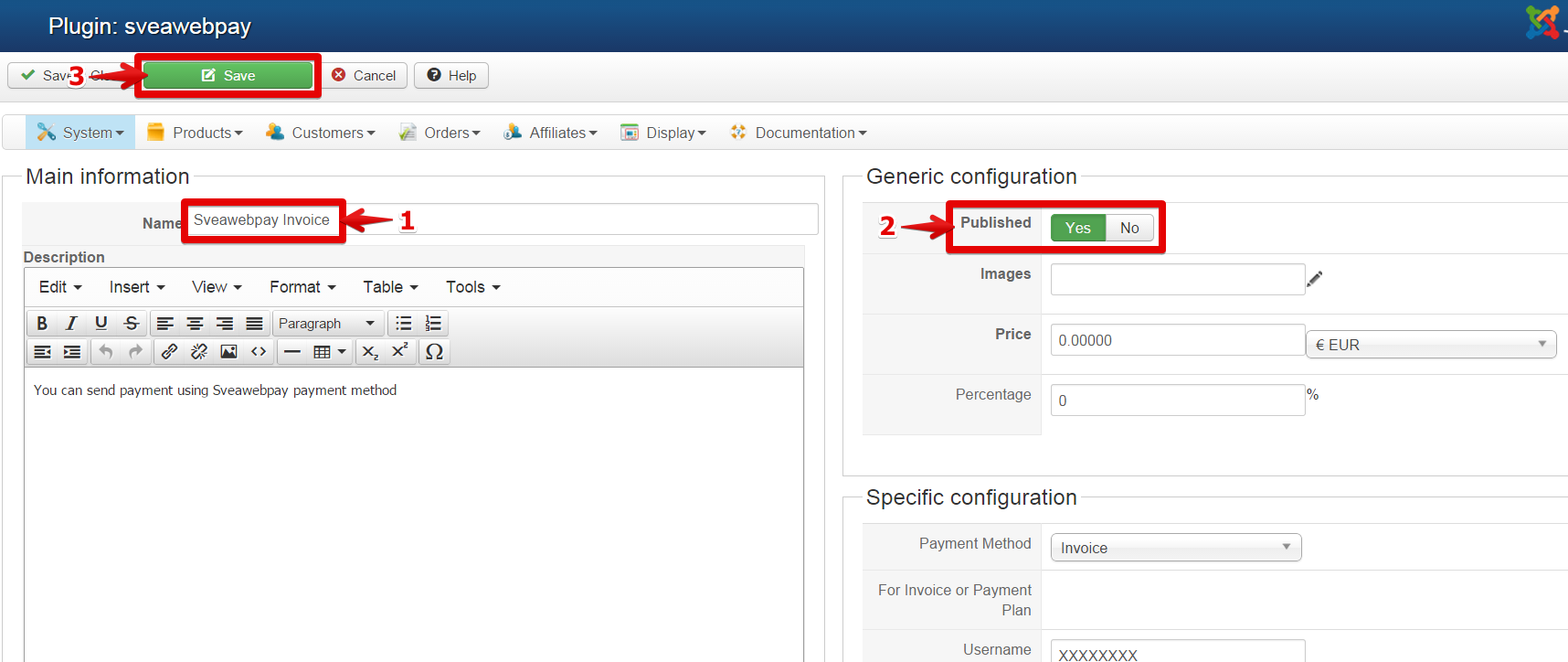

Don't forget to click on published AND to save !



  • Add a name to your Payment Method Configuration.
  • Click on "Yes" to published this method.
  • Save.

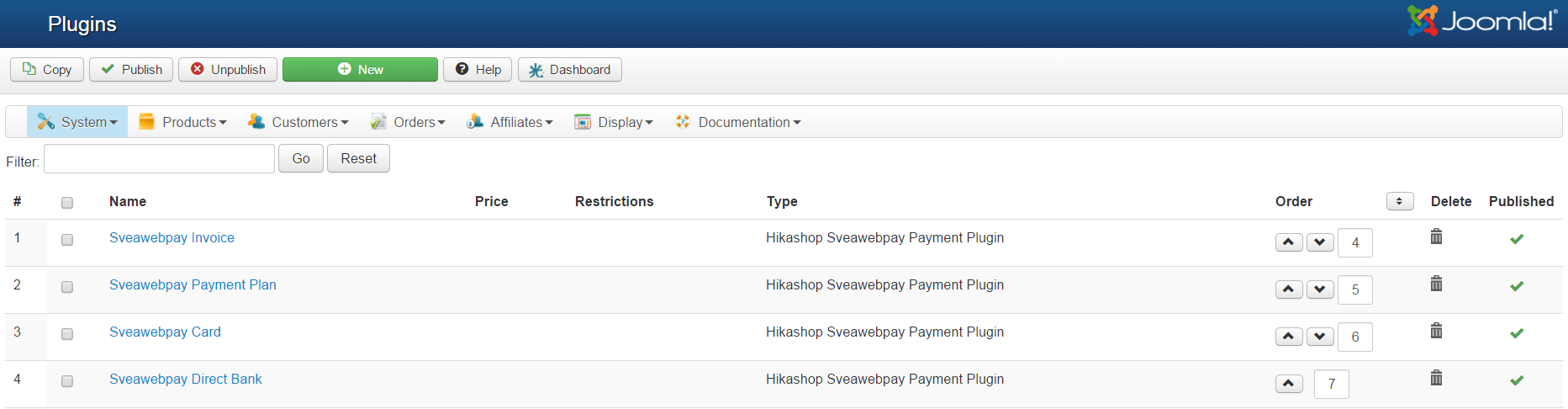

Note : If you want use several Svea Webpay Payment Methods, create several Svea Webpay payment instances like on the screen below.

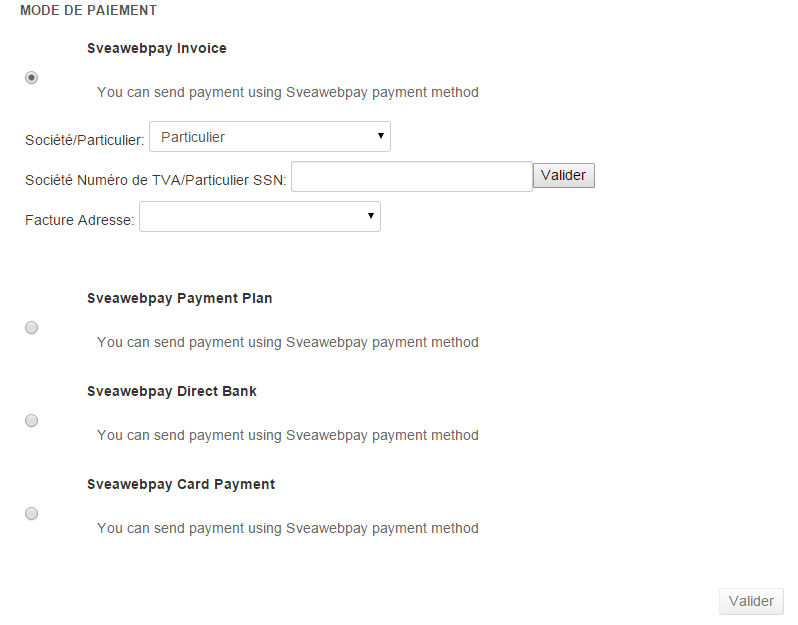

View on the Checkout



We can see on the Checkout page all the methods published, so the customer may choose one payment mode and fill if required, his SSN code/VAT number



Note : The SSN code/VAT number is asked to the customer for the Invoice and the Payment Plan modes, for the Direct Bank and the Card payment modes the customer will be redirected to the payment platform website after finishing the checkout.







Restrictions

  • Zone : You can restrict the check payment method to a zone. By clicking on the edit icon, a popup will open enabling you to select a zone. You can also remove this limitation by clicking on the delete icon.
  • Shipping method : With this option you can select the shipping method for which this payment method will be available. For example, if you choose UPS, this payment method will only be usable if UPS is selected as shipping method. If an other shipping method is selected, this payment method will not be displayed. Note: if you selected "None" or don't select any shipping method, this payment method will always be available.
  • Currency: Choose the currencies allowed by this payment method.
  • Minimum price : The payment method can be available for only orders above a minimum price. This price uses the payment method price currency even if the price is 0.
  • Maximum price : The payment method can be available for only orders below a maximum price. This price uses the payment method price currency even if the price is 0.
  • With tax : Display the payment method only for products with tax.
  • Minimum quantity : If the order has a price lower than the price set in this field, so this payment method will not be available.
  • Maximum quantity : If the order has a price upper than the price set in this field, so this payment method will not be available.
  • Minimum weight : You can set a minimum weight so that orders below it won't be able to be paid with the current payment method. The weight of the order will be calculated based on the weight of each products in it.
  • Maximum weight : You can set a maximum weight so that orders over it won't be able to be paid with the current payment method. The weight of the order will be calculated based on the weight of each products in it.
  • Minimum volume : You can set a minimum volume so that orders below it won't be able to be paid with the current payment method. The volume of the order will be calculated based on the volume of each products in it. The volume is calculated with the width, height and length of the products.
  • Maximum volume : If the order has a volume upper than the price set in this field, so this payment method will not be available.
  • Prefix : You can restrict your payment methods to only post codes including such prefix with this option.
  • Minimum post code : You can restrict your payment methods to only post codes within a certain range whereby this is the minimum possible value
  • Maximum post code : You can restrict your payment methods to only post codes within a certain range whereby this is the maximum possible value
  • Suffix : You can restrict your payment methods to only post codes including such suffix with this option.



Access level



The ACLs are available in the business edition of HikaShop.

  • None : When "none" is selected, the payment method will never be displayed.
  • All : "All" allow you to display the payment method for all the type of users. All groups are allowed to pay via this payment method.
  • Custom : Here you can select which groups can use this payment method. All the checked groups will be able to use this method.
